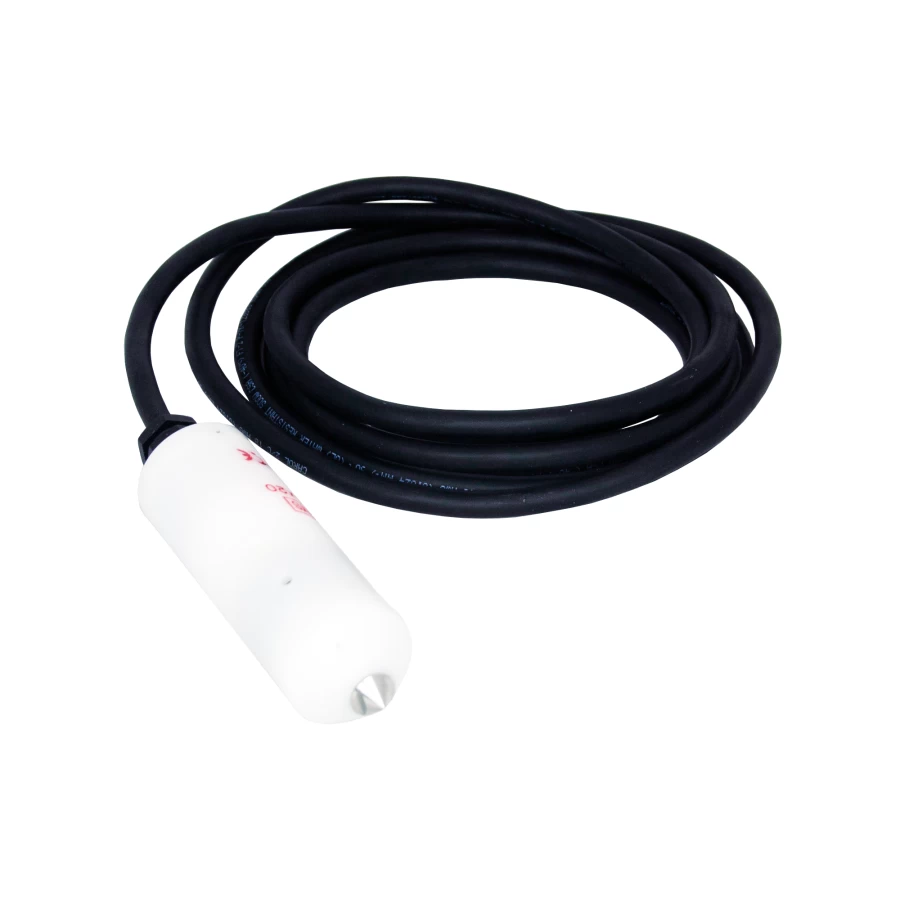

The UCP1A contact probe is a lightweight and versatile instrument that provides a means of carrying out underwater cathodic protection potential measurements. The cable comes in multiple lengths see spec sheet for more information.

It has been specially designed for use with manned or Remotely Operated Vehicles (ROVs) and comes complete with 3 metres of underwater cable. Each probe is supplied with a Certificate of Inspection and Conformity. When the stainless steel probe tip of the UCP1A makes contact with the surface under test, the resulting voltage can be read on a suitable high impedance or digital voltmeter.

The UCP1A is extensively used in a wide range of applications including production and drilling platforms, ships’ hulls, jetties and other marine works.

Price: CALL

    Quantity:

    Half Cell

    • Type: Silver/silver chloride screw-in
    • Output: ≈ +250mV VS SHE
    • Temperature coeff: -0.6mV per °C
    • Temperature range: 0 - 30 °C
    • Working life: 1 to 2 years

    Unit

    • Designed for use with remote voltmeter
    • Minimum load impedance > 10M Ohms
    • Probe: Stainless Steel (316) replaceable (our ref: H14)
    • Weight: 0.5Kg
    • Size: 126mm x 39mm diameter

    This item is not depth rated as there are no pressure sensitive components within the assembly.
